Application of SPACE on MERFISH mouse aging brain dataset
The following tutorial demonstrates how to use SPACE for tissue module discovery in a MERFISH mouse aging brain dataset.(DOI: 10.1016/j.cell.2022.12.010)
[1]:
import pandas as pd
import numpy as np
import scanpy as sc
import squidpy as sq
import space as sp
import seaborn as sns
import matplotlib.pyplot as plt
import matplotlib.colors as clr
from matplotlib.colors import LinearSegmentedColormap
from matplotlib import cm
from matplotlib import colors
[2]:
from sklearn.metrics.cluster import adjusted_rand_score as ARI
[3]:
plt.rcParams['axes.unicode_minus']=False
# plt.rc('font', family='Helvetica')
plt.rcParams['pdf.fonttype'] = 42
sc.settings.verbosity = 3 # verbosity: errors (0), warnings (1), info (2), hints (3)
sc.logging.print_header()
sc.set_figure_params(dpi=120,facecolor='w',frameon=True,figsize=(4,4))
%config InlineBackend.figure_format='retina'
%matplotlib inline
scanpy==1.9.5 anndata==0.9.2 umap==0.5.4 numpy==1.23.4 scipy==1.11.2 pandas==2.1.1 scikit-learn==1.3.0 statsmodels==0.14.0 igraph==0.10.8 pynndescent==0.5.10
[5]:
sp.__version__
[5]:
'0.6.8'
Load data
[6]:
adata=sc.read('adata_young.h5ad')
adata
[6]:
AnnData object with n_obs × n_vars = 11305 × 374
obs: 'fov', 'center_x', 'center_y', 'min_x', 'max_x', 'min_y', 'max_y', 'age', 'clust_annot', 'slice', 'organism_ontology_term_id', 'sex_ontology_term_id', 'suspension_type', 'cell_type_ontology_term_id', 'assay_ontology_term_id', 'tissue_ontology_term_id', 'disease_ontology_term_id', 'self_reported_ethnicity_ontology_term_id', 'development_stage_ontology_term_id', 'donor_id', 'is_primary_data', 'cell_type_annot', 'cell_type', 'assay', 'disease', 'organism', 'sex', 'tissue', 'self_reported_ethnicity', 'development_stage', 'n_counts'
var: 'feature_is_filtered', 'feature_name', 'feature_reference', 'feature_biotype', 'feature_id', 'n_cells'
uns: 'batch_condition', 'cell_type_annot_colors', 'cell_type_colors', 'development_stage_colors', 'log1p', 'schema_version', 'tissue_colors', 'title'
obsm: 'X_pca', 'X_spatial', 'X_umap', 'norm_expr', 'spatial'
[7]:
adata.obsm['spatial']=adata.obsm['X_spatial'].copy()
[8]:
sc.pl.spatial(adata,color=['tissue'],spot_size=30,basis='spatial')
/root/.conda/envs/SPACE/lib/python3.10/site-packages/scanpy/plotting/_tools/scatterplots.py:1207: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
if not is_categorical_dtype(values):
/root/.conda/envs/SPACE/lib/python3.10/site-packages/scanpy/plotting/_tools/scatterplots.py:1216: FutureWarning: The default value of 'ignore' for the `na_action` parameter in pandas.Categorical.map is deprecated and will be changed to 'None' in a future version. Please set na_action to the desired value to avoid seeing this warning
color_vector = pd.Categorical(values.map(color_map))
Run for tissue module identification
[9]:
adata=sp.SPACE(adata,outdir='young',GPU=0,lr=0.002,k=10,verbose=True)
Construct Graph
Average links: 11.24
Load SPACE model
SPACE_Graph(
(encoder): GAT_Encoder(
(hidden_layer1): GATv2Conv(374, 128, heads=6)
(hidden_layer2): GATv2Conv(768, 128, heads=6)
(conv_z): GATv2Conv(768, 10, heads=6)
)
(decoder): InnerProductDecoder()
(decoder_x): Sequential(
(0): Linear(in_features=10, out_features=128, bias=True)
(1): BatchNorm1d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(2): LeakyReLU(negative_slope=0.01)
(3): Dropout(p=0.1, inplace=False)
(4): Linear(in_features=128, out_features=374, bias=True)
(5): ReLU()
)
)

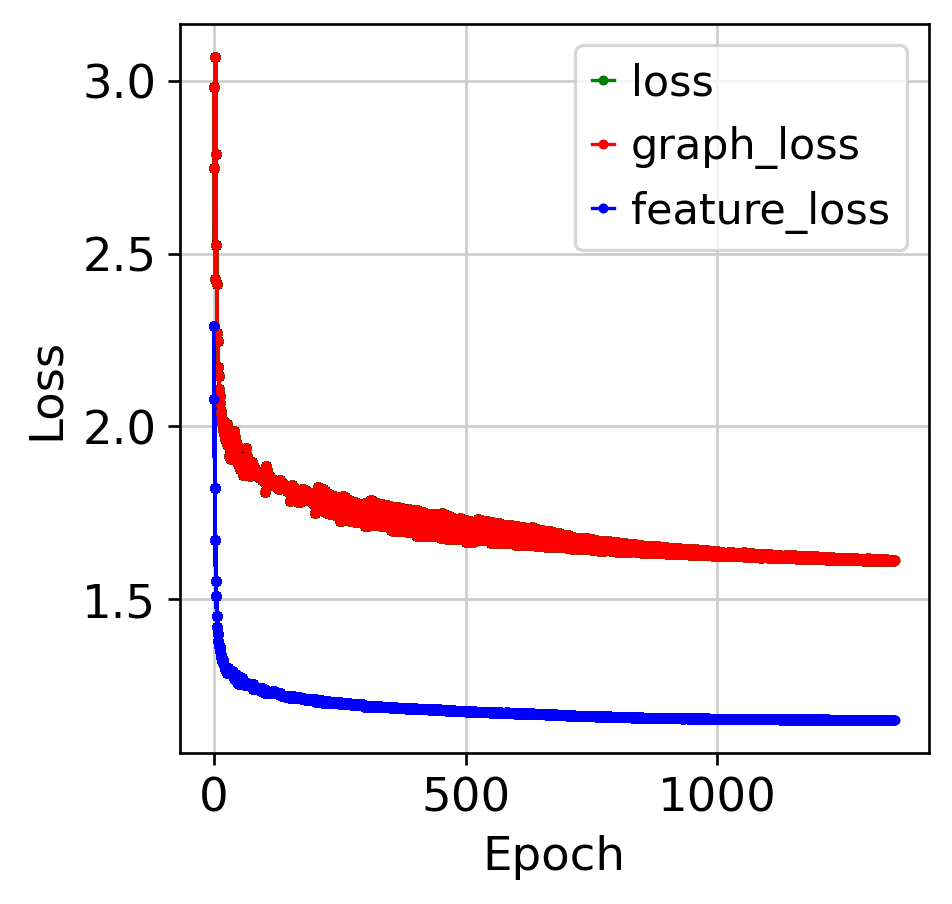

Train SPACE model
====> Epoch: 0, Loss: 2.9820
====> Epoch: 50, Loss: 1.8906
====> Epoch: 100, Loss: 1.8413
====> Epoch: 150, Loss: 1.8141
====> Epoch: 200, Loss: 1.7969
====> Epoch: 250, Loss: 1.7912
====> Epoch: 300, Loss: 1.7781
====> Epoch: 350, Loss: 1.7687
====> Epoch: 400, Loss: 1.7582
====> Epoch: 450, Loss: 1.7426
====> Epoch: 500, Loss: 1.7285
====> Epoch: 550, Loss: 1.7209
====> Epoch: 600, Loss: 1.7103
====> Epoch: 650, Loss: 1.7002
====> Epoch: 700, Loss: 1.6857
====> Epoch: 750, Loss: 1.6754
====> Epoch: 800, Loss: 1.6667
====> Epoch: 850, Loss: 1.6554
====> Epoch: 900, Loss: 1.6485
====> Epoch: 950, Loss: 1.6438
====> Epoch: 1000, Loss: 1.6392
====> Epoch: 1050, Loss: 1.6336
====> Epoch: 1100, Loss: 1.6310
====> Epoch: 1150, Loss: 1.6259
====> Epoch: 1200, Loss: 1.6219
====> Epoch: 1250, Loss: 1.6182
====> Epoch: 1300, Loss: 1.6184
====> Epoch: 1350, Loss: 1.6142
====> Epoch: 1352, Loss: 1.6125
EarlyStopping: run 1352 iteration
computing neighbors
finished: added to `.uns['SPACE']`
`.obsp['SPACE_distances']`, distances for each pair of neighbors
`.obsp['SPACE_connectivities']`, weighted adjacency matrix (0:00:21)
computing UMAP
finished: added
'X_umap', UMAP coordinates (adata.obsm) (0:00:07)
[53]:
sc.tl.leiden(adata,resolution=0.128,neighbors_key='SPACE')
running Leiden clustering
finished: found 8 clusters and added
'leiden', the cluster labels (adata.obs, categorical) (0:00:03)
[54]:

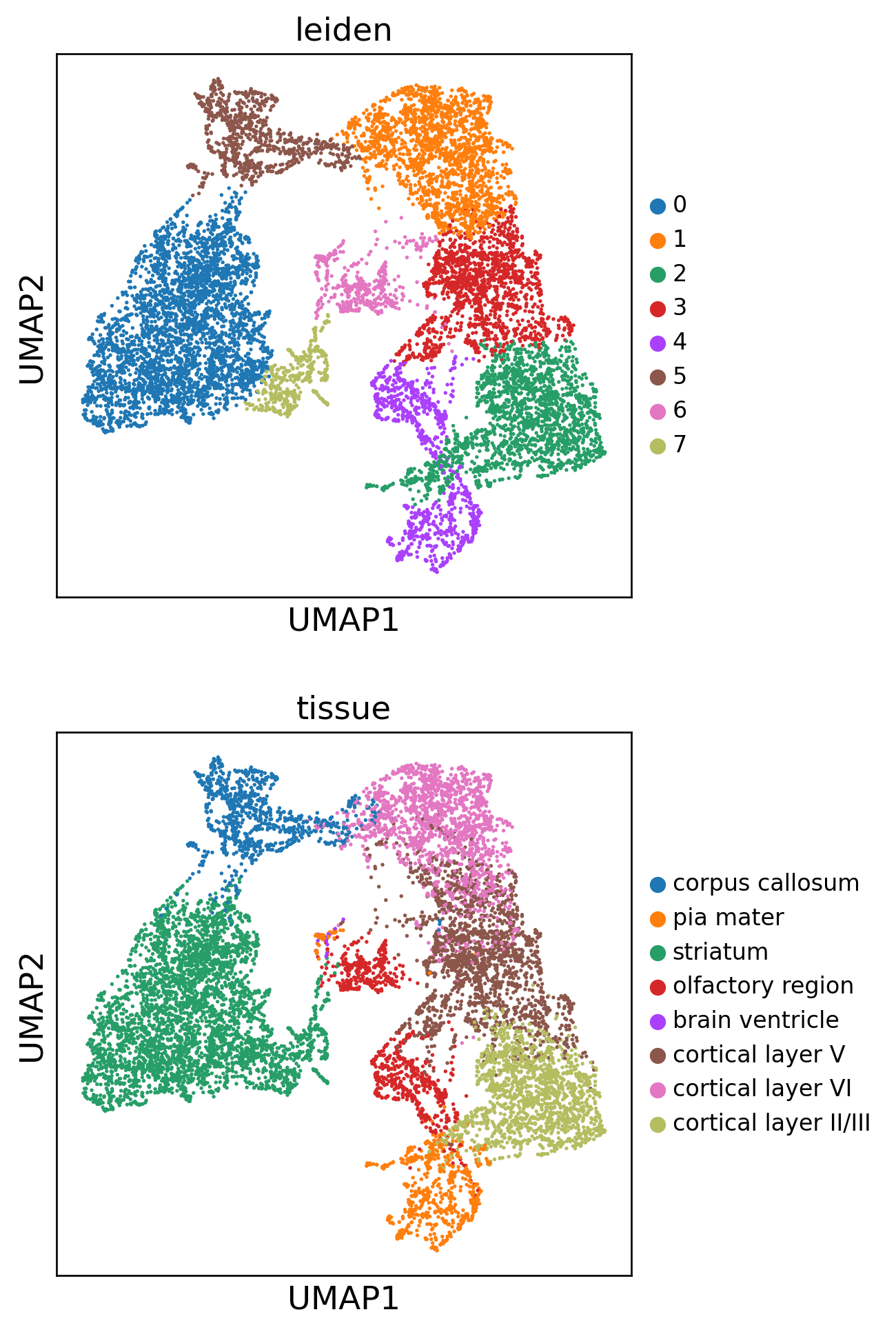

sc.set_figure_params(dpi=120,facecolor='w',frameon=True,figsize=(4,4.5))
sc.pl.umap(adata,color=['leiden','tissue'],ncols=1,legend_fontsize=10)
/root/.conda/envs/SPACE/lib/python3.10/site-packages/scanpy/plotting/_tools/scatterplots.py:1207: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
if not is_categorical_dtype(values):
/root/.conda/envs/SPACE/lib/python3.10/site-packages/scanpy/plotting/_tools/scatterplots.py:1216: FutureWarning: The default value of 'ignore' for the `na_action` parameter in pandas.Categorical.map is deprecated and will be changed to 'None' in a future version. Please set na_action to the desired value to avoid seeing this warning
color_vector = pd.Categorical(values.map(color_map))
/root/.conda/envs/SPACE/lib/python3.10/site-packages/scanpy/plotting/_tools/scatterplots.py:391: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
cax = scatter(
/root/.conda/envs/SPACE/lib/python3.10/site-packages/scanpy/plotting/_tools/scatterplots.py:1207: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
if not is_categorical_dtype(values):
/root/.conda/envs/SPACE/lib/python3.10/site-packages/scanpy/plotting/_tools/scatterplots.py:1216: FutureWarning: The default value of 'ignore' for the `na_action` parameter in pandas.Categorical.map is deprecated and will be changed to 'None' in a future version. Please set na_action to the desired value to avoid seeing this warning
color_vector = pd.Categorical(values.map(color_map))
/root/.conda/envs/SPACE/lib/python3.10/site-packages/scanpy/plotting/_tools/scatterplots.py:391: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
cax = scatter(
[55]:

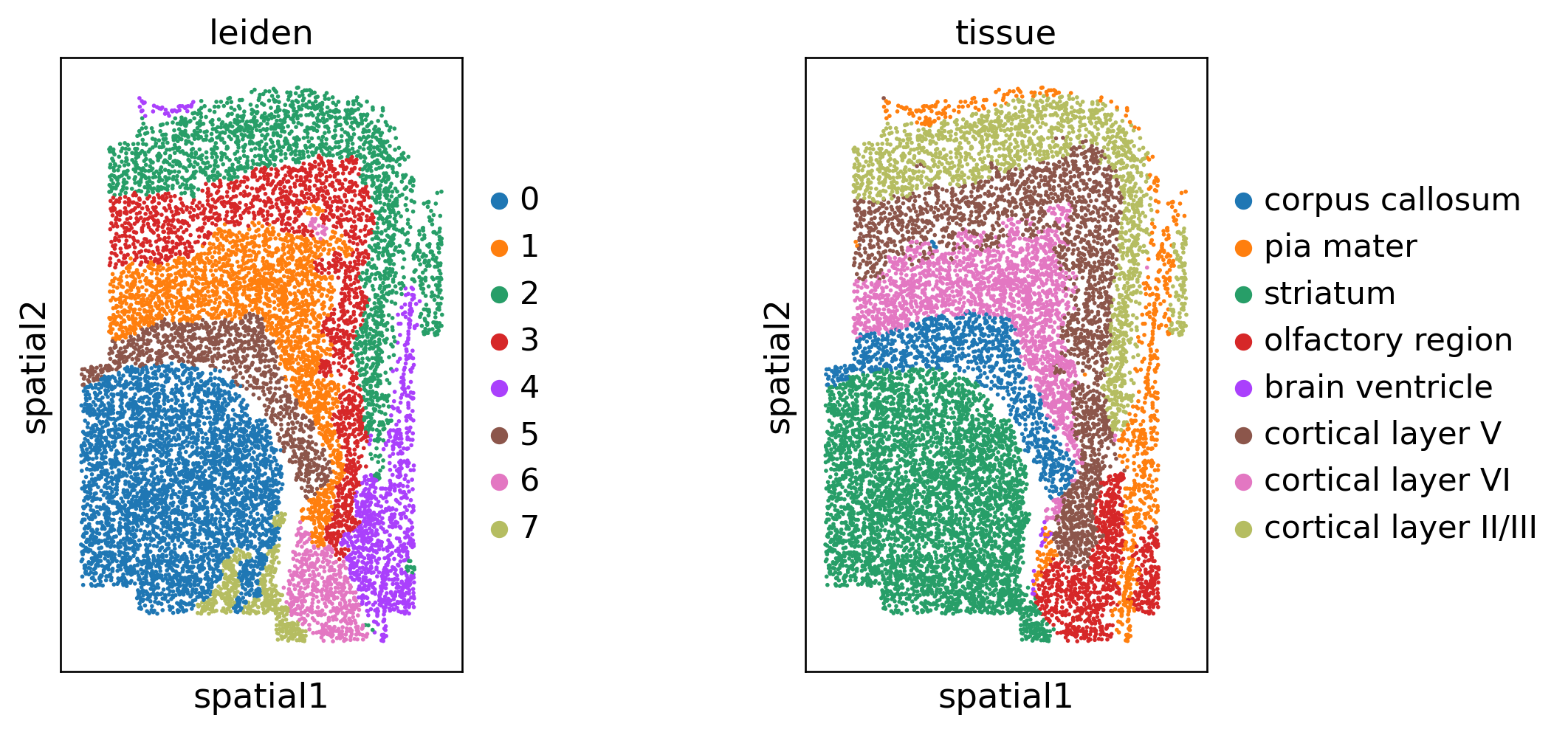

sc.pl.spatial(adata,color=['leiden','tissue'],spot_size=30)
/root/.conda/envs/SPACE/lib/python3.10/site-packages/scanpy/plotting/_tools/scatterplots.py:1207: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
if not is_categorical_dtype(values):
/root/.conda/envs/SPACE/lib/python3.10/site-packages/scanpy/plotting/_tools/scatterplots.py:1216: FutureWarning: The default value of 'ignore' for the `na_action` parameter in pandas.Categorical.map is deprecated and will be changed to 'None' in a future version. Please set na_action to the desired value to avoid seeing this warning
color_vector = pd.Categorical(values.map(color_map))
/root/.conda/envs/SPACE/lib/python3.10/site-packages/scanpy/plotting/_tools/scatterplots.py:1207: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
if not is_categorical_dtype(values):
/root/.conda/envs/SPACE/lib/python3.10/site-packages/scanpy/plotting/_tools/scatterplots.py:1216: FutureWarning: The default value of 'ignore' for the `na_action` parameter in pandas.Categorical.map is deprecated and will be changed to 'None' in a future version. Please set na_action to the desired value to avoid seeing this warning
color_vector = pd.Categorical(values.map(color_map))
evaluate performance using adjust rand score and homogeneity score
[56]:
from sklearn.metrics.cluster import adjusted_rand_score as ARI
[57]:
ARI(adata.obs['tissue'].values, adata.obs['leiden'].values)
[57]:
0.7603787846439463
[58]:
from sklearn.metrics import homogeneity_score
[59]:
homogeneity_score(adata.obs['tissue'].values, adata.obs['leiden'].values)
[59]:
0.7394525217507102
[ ]:
